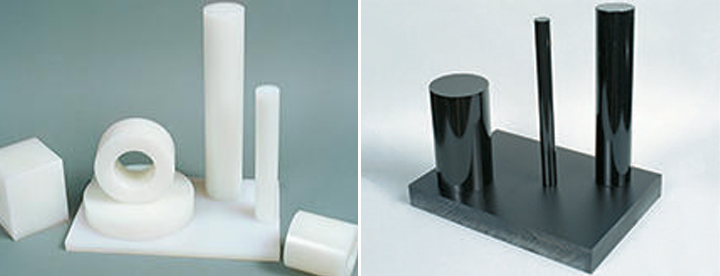

PA6 ( Poly amide 6 )
Attractive features of Poly amide 6 include good mechanical properties, abrasion and wear resistance, chemical resistance ( except to minural acids and phenols), oil resistance, and gas barrier performance. Melting point is high, and water absorption characteristics are favorable due to the checmical structure of the material.
ㆍCharacteristics ㆍApplications
  • - Excellent resistance to alkaline substances and solvents
  • - Superior water absorption
  • - Electronic mock-up parts
  • - Automotive parts and modeling materials
  • - Electronical parts
  • - Parts for general machinery

1-1 Standard Dimension(PA6)
Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 Weight ( Kg/sheet )
W 500mm x L 1000mm
0.5 ±0.05 0.61
1 ±0.10 1.23
1.5 ±0.15 1.80
2 2.40
3 ±0.20 3.56
4 4.85
5 +0.2 ~ +0.7 6.05
6 7.12
8 +0.2 ~ +1.1 10.23
10 12.60
12 +0.3 ~ +1.5 15.26
15 18.81
20 24.73
25 30.64
30 +0.5 ~ +2.5 37.27
35 43.18
40 49.10
50 60.93
60 +0.5 ~ +3.5 73.35
70 85.18
80 +0.5 ~ +5.0 97.90
90 109.73
100 121.56
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.

1-2 Standard Dimension(PA66)
Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 Weight ( Kg/sheet )
W 610mm x L 1000mm W 1000mm x L 1000mm
5 ±0.25 * 6.05
6 +0.2 ~ +1.1 * 7.12
8 6.24 *
10 7.68 *
12 +0.3 ~ +1.5 9.31 *
15 11.47 *
20 15.08 *
25 18.69 *
30 +0.5 ~ +2.5 22.73 *
35 26.34 *
40 29.95 *
50 37.17 *
60 +0.5 ~ +3.5 44.74 *
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
1-2 Standard Dimension(PA66GF(30%))
Sheet & Plates
Thickness
(mm)		 Thickness tolerance
(mm)		 Weight ( Kg/sheet )
W 610mm x L 1000mm
10 +0.2 ~ +1.1 9.10
15 +0.3 ~ +1.5 13.59
20 17.86
25 22.13
30 +0.5 ~ +2.5 26.92
40 35.47
50 44.01
60 +0.5 ~ +3.5 52.99
  • * Dimension and weight can be varied by tolerance in the specification.
  • * Customized size available upon request.
