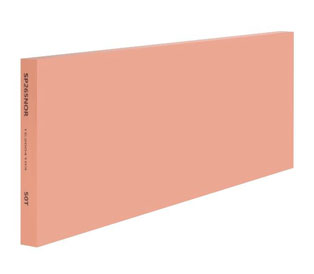

SP-265 / NOR
Our SP-265 is epoxy modeling board developed for automotive master modeling and styling purposse. Superior surface finishes of the board itself, are taken from applying precisly controlled fillers into it and unlike the other conventional epoxy type boards which emit widespread dusts during the process, our board allows engineer to manage small amount of dust during the process. Applications for this board are checking fixture, generally conventional jigs and master modeling.
Mechanical Properties ( At 25℃ atmosphere condition )
Item Test method Unit Result
Color - - -
Density ISO 1183 g/㎤ -
Shore D hardness ISO 868 - -
CTE ISO 11359 10-6K-1 -
Tg ISO 11359 ℃ -
Compressive strength ISO 604 MPA -
Tensile strength ISO 527 MPA -
Impact resistance(Charpy) ISO 179 KJ/㎡ -
Flexural strength ISO 178 MPA -
Flexural modulus ISO 178 MPA -

* Technical statements and recommendations refer to current standard of technique and are based on our own experiances. Further development and improvements are reserved. Due to the variety of processing possibilities own experiments are recommended to optimise results.

Applications
- Master modeling for interior and exterior
- Design and vacuum forming
- Press checking jig, Injection checking jig 		- Tire mold, Shoes mold
- General design
Standard dimension
- 1,500 x 500 x 30 mm
- 1,500 x 500 x 50 mm
* Customized size available upon request. 		- 1,500 x 500 x 75 mm
- 1,500 x 500 x 100 mm
