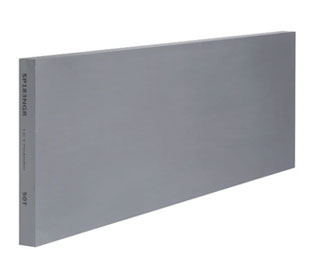

SP-183 / NGR
Our SP-183 as basic material for heavy weight checking fixture in automotive industry is outstanding high density tooling board. excellent CTE contributes to best work-piece without any defect and deformation and strictly controlled hardness, strength and elasticity assign uniform density distribution, tight hardness difference, anti-crack properties which might be occured during NC machining. it has widely been used for tooling jig, hammer form and the other heavy weight checking fixture.
Mechanical Properties ( At 25℃ atmosphere condition )
Item Test method Unit Result
Color - - gray
Density ISO 1183 g/㎤ 1.25, ±0.02
Shore D hardness ISO 868 - 82, ±2
CTE ISO 11359 10-6K-1 46
Tg ISO 11359 ℃ 110
Compressive strength ISO 604 MPA 75.3
Tensile strength ISO 527 MPA 33.3
Impact resistance(Charpy) ISO 179 KJ/㎡ 8-10
Flexural strength ISO 178 MPA 60.7
Flexural modulus ISO 178 MPA 2800-3200

* Technical statements and recommendations refer to current standard of technique and are based on our own experiances.
Further development and improvements are reserved. Due to the variety of processing possibilities own experiments are recommended to optimise results.

Applications
- Press checking fixture
- Injection tooling jig
- Automotive tooling jig 		- Hammer tooling
- Sheet metal forming tools
Standard dimension
- 1,500 x 500 x 30 mm
- 1,500 x 500 x 50 mm
* Customized size available upon request. 		- 1,500 x 500 x 75 mm
- 1,500 x 500 x 100 mm
