5 Axis Machining

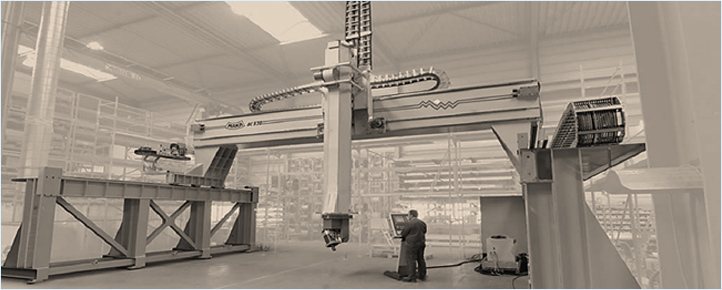

Our adopted massive 5 axis machine is MAKA Systems GmbH’s BC 570 in Germany which has been used by many reputational automotive car makers such as Benz, BMW, Volfswagen and so on. It enables machining of huge workpieces such as Vehicles, Yacht and Wind blade while not only providing superior precise dimension control, fine surface aspect but also enabling efficient way even for very complex shaped workpieces.

5 Axis Machine Specification
Classfication Length Speed Accuracy
X Axis 11Metre 60 M/MIN +/-0.02 mm
Y Axis 8Metre 60 M/MIN +/-0.02 mm
Z Axis 4.25Metre 24 M/MIN +/-0.02 mm
A Axis 196Degree 10000° /MIN +/-0.03 mm
C Axis 540Degree 10000° /MIN +/-0.03 mm


Automated Tool Exchanger Specification
Automatic Tool Exchanger
- Maximum tool exchange quantity : 51 Tools
- Horizontal Chain types
- Rotary gripper types for High speed tool exchanges
- Max. tool install (Diametre), Random : 90mm, Array Install : 160mm
- Max. tool install (Length), Avg : 160mm (Spindle), Max : 250mm
- Maximum tool limit weight : 150 kg
- Within 10 sec tool exchanges are available Automatic Tool Exchanger
