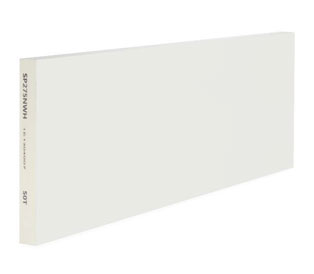

SP-275 / NWH
Our SP-275 is epoxy tooling board designed and produced for customer demand. Low CTE( Coefficient of Thermal Expansion ) characteristic gives good dimensional stability under elevated temperature, while uniform surface cell structure provides superior surface roughness during milling. This board is suitable for various applications such as vacuum forming mold, master-model, checking fixture.
Mechanical Properties ( At 25℃ atmosphere condition )
Item Test method Unit Result
Color - - -
Density ISO 1183 g/㎤ -
Shore D hardness ISO 868 - -
CTE ISO 11359 10-6K-1 -
Tg ISO 11359 ℃ -
Compressive strength ISO 604 MPA -
Tensile strength ISO 527 MPA -
Impact resistance(Charpy) ISO 179 KJ/㎡ -
Flexural strength ISO 178 MPA -
Flexural modulus ISO 178 MPA -

* Technical statements and recommendations refer to current standard of technique and are based on our own experiances. Further development and improvements are reserved. Due to the variety of processing possibilities own experiments are recommended to optimise results.

Applications
- Press checking jig
- Injection checking jig
- Vacuum forming, deep-draw dies 		- foam mould
- Automotive checking fixture and gauge
- Casting mold
Standard dimension
- 1,500 x 500 x 30 mm
- 1,500 x 500 x 50 mm
* Customized size available upon request. 		- 1,500 x 500 x 75 mm
- 1,500 x 500 x 100 mm
